我们还可以提供一套完整的智能驱动系统，具有先进的控制技术，业界领先的性能和简单的调试等诸多优点。多种现场总线连接选项以及控制接口，广泛的反馈类型，更多的扭矩和更多的功能集成到一个更小的封装，这样你就可以制造一台更加紧凑，更多功能的设备。
|
MotiFlex e100 驱动器 MotiFlex e100是一款数字智能型驱动器。可驱动直线电机、力矩电机、伺服电机或第三方电机等。内置单轴运动控制模块，可进行先进的多任务MINT编程。以太网、USB接口、串口和CANopen端口可与PLC、触摸屏、分布式I/O及其他设备灵活通信。ActiveX组件可实现Microsoft Visual C++、Microsoft Visual Basic 6、Microsoft Visual Basic .NET、Borland Delphi、LabVIEW编程。 技术参数 | ||||||||||||||||||||
| ||||||||||||||||||||
| 型号简介 | ||||||||||||||
| ||||||||||||||
| ||||||||||||||
ABB伺服电机
The BSM C series of servo motors provide higher inertia in an economical package. These
motors have a reliable magnetic design, and are used in applications needing higher inertial
matching. These rugged motors provide peak torques equal to three times continuous, thus
enabling rapid acceleration for the higher inertial demanding applications. Besides a wide
variety of feedback devices, other options such as brakes, cooling to extend performance,
mounting, shaft, and electrical windings are available for your application needs. We also have
stocked motors for immediate delivery for your application needs.
Optional forced air cooling on some models - to extend torque capability for additional motor performance.

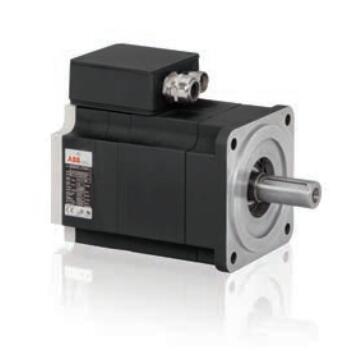

Typical BSM 90/100 series shown
| Motor family | Size |
Torque range | ||
|
mm |
in |
lb-in |
Nm | |
| BSM80 | 89 | 3.5 | 10-38 | 1.2-4.3 |
| BSM90 | 120 | 4.7 | 23-69 | 2.6-7.8 |
| BSM100 | 146 | 5.7 | 44-265 | 5-30 |
| BSM132 | 244 | 9.6 | 469-1185 | 53-134 |
